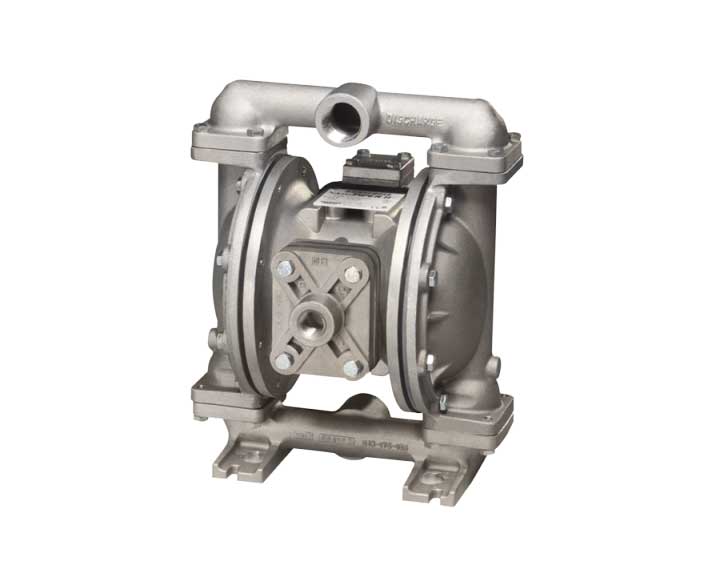

U1F Metallic


UL (Underwriters Laboratory) Compliant Pumps are designed to meet UL79 standards for diaphragm pumps handling flammable liquids. All Aluminum construction with approved Nitrile or Virgin PTFE UL elastomers. Fully groundable to prevent static discharge.

Port Size 1” NPT (Internal)
1” BSPT (Tapered)
Capacity 0 to 45 gpm (170 lpm)
Air Distribution Valve No-lube, no-stall design
Solids-Handling Up to .25" (6 mm)
Heads Up To 100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke .11 gallons (.42 liters)
Max Operating Pressure 125 psi (8.6 bar)
Shipping Weight Aluminum: 53 lbs. (24 kg)

U1F Metallic Performance Curve
