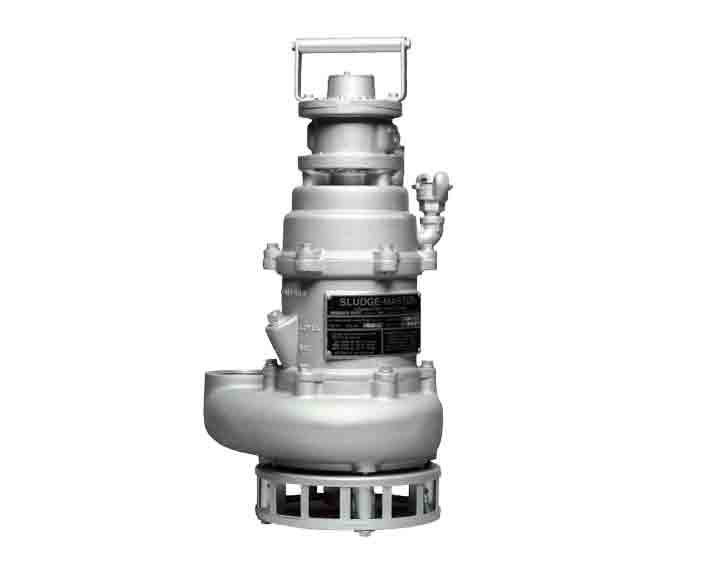

SMA3 Metallic

Description

The SludgeMaster™ Submersible, Air-Powered Trash Pump handles mud, leaves, twigs, sand, sludge, trash-laden water and soft solids to 1½" (3.8cm). High capacity, low head. The pump weighs only 59 pounds (26kg), and can fit through an opening as small as 14" (35cm). Sturdy construction for rough handling and long life. Optional rock screen available.

Specification
Port Size 3" NPT or BSP (Tapered)
Capacity 0- 300 gpm (1140 lpm)
Air Distribution Valve --
Solids-Handling Up to 1.5" (38mm)
Heads Up To 28 psi or 65 ft. of water (1.9 bar or 19.8 meters)
Displacement/Stroke --
Max Operating Pressure 100 psi (7 bar)
Shipping Weight --

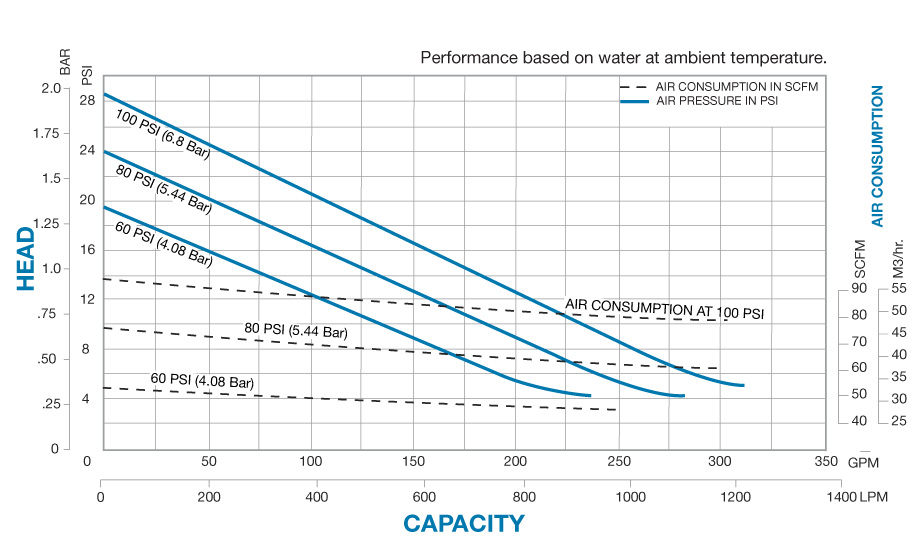

SMA3 Metallic Performance Curve
