Description
Designed to meet USDA (United States Department of Agriculture - Dairy Division) standards, these pumps are the ultimate in leak protection and clean pumping with the paired performance of AODD technology. Whether in a clean-in-place or clean-out-of-place application, these pumps will exceed the need for reliability and cleanability. Some of their most exceptional features include.
| Specification | |
| Port Size | 1 1/2" TRI-CLAMP |
| Capacity | 0 to 52 gpm (196 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .25" (6 mm) |
| Heads Up To | 125 psi or 289 ft. of water (8.6 bar or 88 meters) |
| Displacement/Stroke | .36 gallons (1.36 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight | 316 Stainless Steel: 65 lbs. (29 kg) |

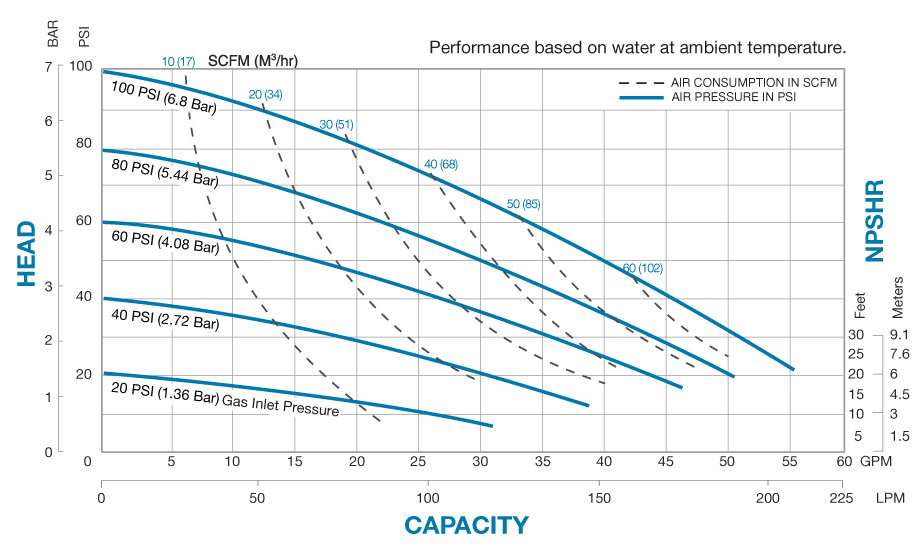

SET1 Metallic Performance Curve
