Description

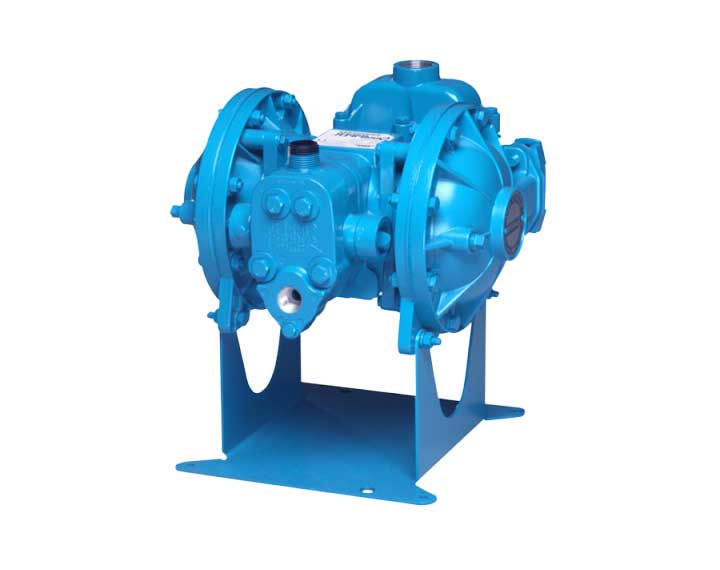

HDB Metallic Pumps are ideal for thin to highly viscous and small solids-laden fluids, while providing excellent suction lift capability and exclusive variable porting options (side, top, bottom and dual). HDB pumps are thick wall constructed of Sand Casted Aluminum, Cast Iron, Stainless Steel or Alloy C with elastomer, TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. HDB pumps are enhanced with an extended wear package.
| Specification | |
| Port Size | SB1: 1” NPT SB25: 1” BSP (Tapered) |
| Capacity | 0 to 42 gpm (159 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .25" (6.3 mm) |
| Heads Up To | 125 psi or 289 ft. of water (8.6 bar or 88 meters) |
| Displacement/Stroke | .09 gallons (.34 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) |
| Shipping Weight | Aluminum: 31 lbs. (14 kg) Stainless Steel: 45 lbs. (20 kg) Alloy C: 45 lbs. (20 kg) Stainless Steel with Cast Iron Center: 65 lbs. (30 kg) Alloy C with Cast Iron Center: 65 lbs. (30 kg) |

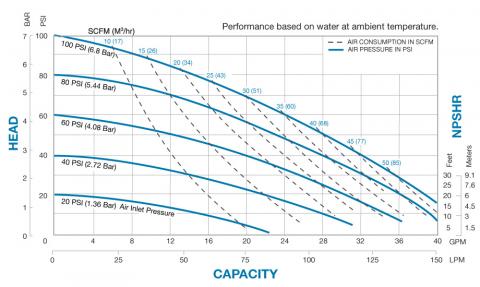

SB1 / SB25 Metallic Performance Curve
