Description

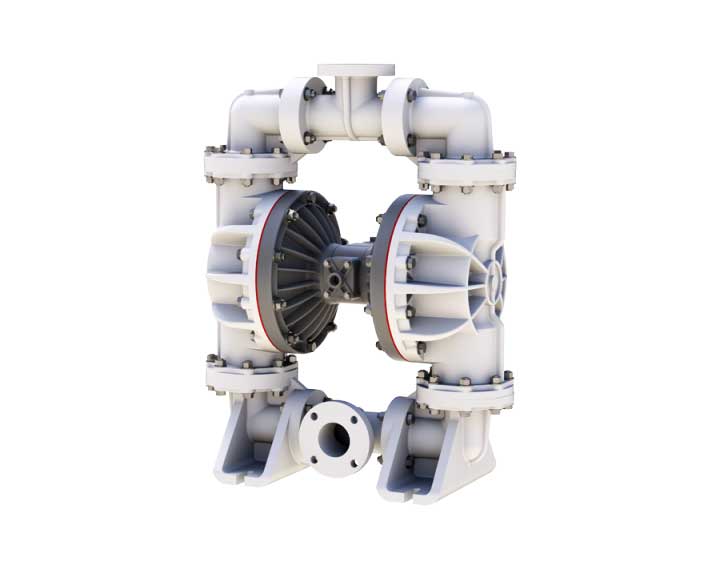

The new S30 Non-Metallic Standard Duty Ball Valve Pump is the best choice forbulk chemical transfer applications:
- Corrosion resistant Polypropylene or PVDF
- Class leading maximum flow rate and efficiency
- ESADS+ Air Distribution System. The only pump in its class with an externally serviceable air distribution system
- Backed by the best technical support available anywhere
| Specification | |
| Port Size | 3" ANSI Flange or 80mm DIN Flange |
| Capacity | 0 to 280 gpm (1,060 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .75" (19 mm) |
| Heads Up To | 100 psi or 231 ft. of water (7 bar or 70 meters) |
| Displacement/Stroke | 1.0 gallon (3.8 liters) |
| Max Operating Pressure | 100 psi (7 bar) |
| Shipping Weight | Polypropylene: 165 lbs. (75 kg) PVDF: 271 lbs. (123 kg) |

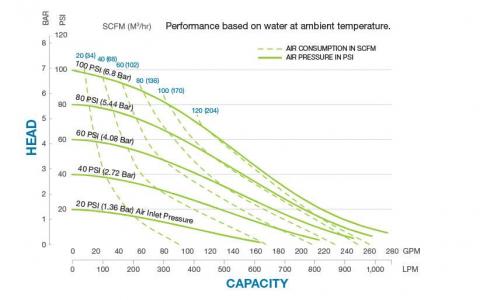

S30 Non-Metallic Performance Curve
