Description

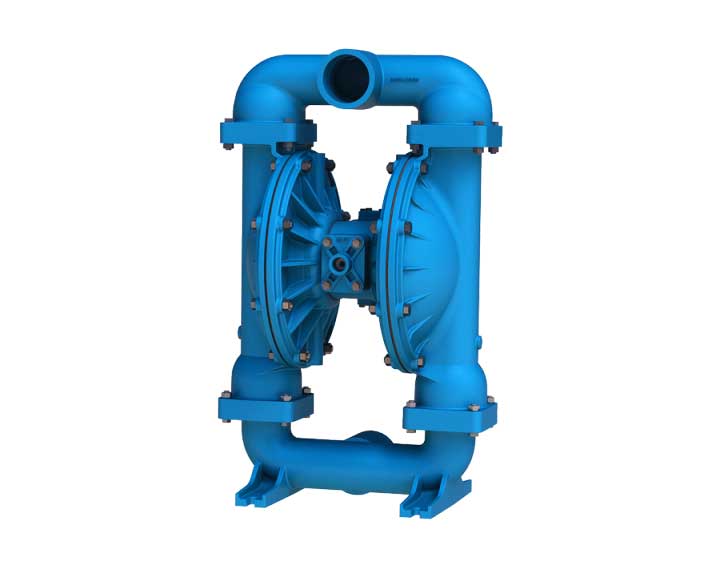

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
| Specification | |
| Port Size | 3" NPT or 3" BSP (Tapered) 3" ANSI Flange or 3" DIN Flange |
| Capacity | 0 to 285 gpm (1078 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .38" (9.65 mm) |
| Heads Up To | 125 psi or 289 ft. of water (8.6 bar or 88 meters) |
| Displacement/Stroke | .94 gallons (3.56 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) |
| Shipping Weight |
Aluminum: 116 lbs. (53 kg) Cast Iron: 215 lbs. (98 kg) Stainless Steel: 194 lbs. (87 kg) |

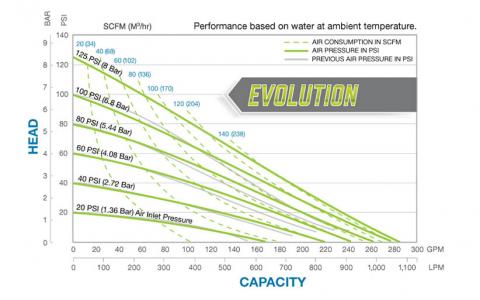

S30 Metallic Performance Curve
