Description
Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.
| Specification | |
| Port Size | 2" NPT (Internal) 2" BSP (Tapered) 2" ANSI 150# Raised Face Flanged |
| Capacity | 0 to 198 gpm (750 lpm) |
| Air Distribution Valve | No-lube, no-stall design |
| Solids-Handling | Up to .25" (6 mm) |
| Heads Up To | 125 psi or 289 ft. of water (8.6 bar or 88 meters) |
| Displacement/Stroke | .42 gallons (1.59 liters) |
| Max Operating Pressure | 125 psi (8.6 bar) |
| Shipping Weight |
Aluminum: 69 lbs. (31 kg) Cast Iron: 129 lbs. (59 kg) Stainless Steel: 114 lbs. (52 kg) |

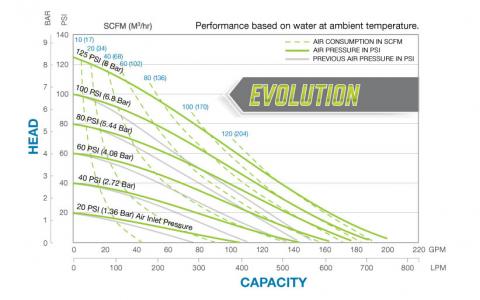

S20 Metallic Performance Curve
