G1F Metallic


Natural Gas Operated Pumps are CSA* (Canadian Standards Association) certified to ANSI LC6 standard for operation using sweet or sour natural gas. The pumps are also compliant with NACE Standard MR0175/ISO15156. The gas pump utilizes Aluminum or 316 Stainless Steel wetted construction with Nitrile or Virgin PTFE diaphragms and check balls. The gas valve is constructed of Aluminum with Nitrile or FKM (fluorocarbon) elastomers. Pumps are fully groundable, preventing static discharge. A Stainless Steel gas valve option is available on G15 to G30 pumps for more corrosive applications.

Port Size 1" NPT / BSP
Capacity 0 to 45 gpm (170 lpm)
Air Distribution Valve No-lube, no-stall design
Solids-Handling Up to .25" (6 mm)
Heads Up To 100 psi or 231 ft. of water (7 bar or 70 meters)
Displacement/Stroke .11 gallons (.42 liters)
Max Operating Pressure 100 psi (7 bar)
Shipping Weight Aluminum: 28 lbs. (13 kg)
Stainless Steel: 43 lbs. (20 kg)

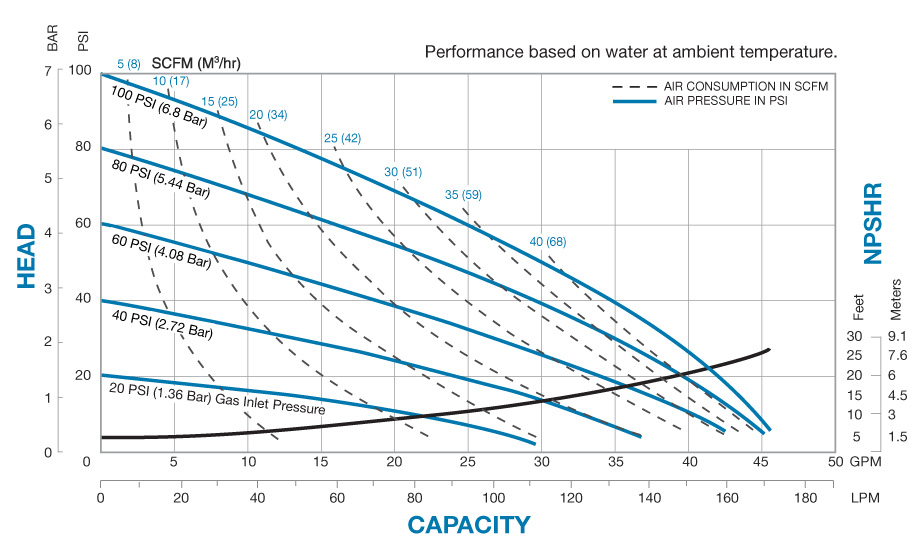

G1F Metallic Performance Curve
