E02 Metallic

Description

Standard Duty Metallic Pumps are ideally suited for intermittent / on-demand, portable, moderately abrasive fluids, and suspended solids. Standard duty pumps are constructed in Aluminum, Cast Iron, Stainless Steel and non-metallic materials such as PTFE, Polypropylene, and PVDF with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Specification
Port Size 1/4" BSP Parallel
Capacity 0 to 4.75 gpm (18 lpm)
Air Distribution Valve No-lube, no-stall design
Solids-Handling 1/16" (1 mm)
Heads Up To 125 psi or 298 ft. of water (8.6 bar or 88 meters)
Displacement/Stroke .048 gallons (.015 liters)
Max Operating Pressure 125 psi (8.6 bar)
Shipping Weight Stainless Steel: 8.82 lbs. (4.0 kg)

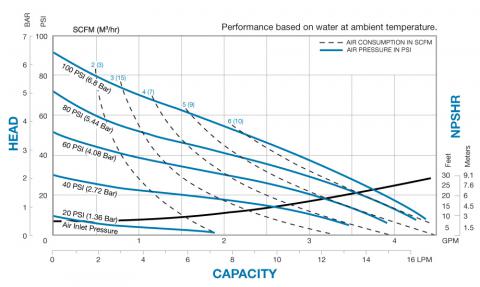

E02 Metallic Performance Curve
